High Speed Fully Automatic Paper Cutting Machine Hydraulic 670mm Size

    Buy cheap High Speed Fully Automatic Paper Cutting Machine Hydraulic 670mm Size from wholesalers

    Buy cheap High Speed Fully Automatic Paper Cutting Machine Hydraulic 670mm Size from wholesalers
    • Buy cheap High Speed Fully Automatic Paper Cutting Machine Hydraulic 670mm Size from wholesalers

    High Speed Fully Automatic Paper Cutting Machine Hydraulic 670mm Size

    Ask Lasest Price
    Brand Name : Customized
    Model Number : DB-670V8
    Certification : CE
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 500 units per month
    • Product Details
    • Company Profile

    High Speed Fully Automatic Paper Cutting Machine Hydraulic 670mm Size

    670mm fully automatic paper cutting machine, hydraulic paper cutter machine

    DB-670V8 Hydraulic Programing Paper Guillotine Cutter Paper Machine


    Design with CE standard, front grating safety protection and back protection cover conform to safe system
    Heavy-duty stander, symmetrical pressing paper function and double hydraulic drive system
    Inclined cutting technology
    Spin cutter with adjusting depth curve technology device
    Adjustable gap of blade carrier technology with patented
    Oscillating oil cylinder technology
    Double orbit push paper function for guarantee of precision
    Programmed circuit design, being able to save 99 group data with setting program at will
    Opitical Cutting Line
    Fashionable appearance design with patented

    1. Automatic infrared light on the cutting edge
    2. The heavy frame design optimization, precision processing, stable performance, durable;
    3. High precision on paper control design to combine mechanism and power
    4. self-closing button switches, both hands interlock device, automatic reset function,
    guarantee absolute security;
    5. high efficiency and safety,
    6. Can make PET album, PVC album, menu, advertising….
    7. Easy to operate and low cost


    Double Hydraulic with strong power system design
    Imported motor with strong power,Imported hydraulic components for ensure quality

    Patented appearance
    Simple, exquisite metal technics and removable design, being applied to graphic printing office

    Inclined blade cutting patented technology
    Any thick paper can be cut easily with inclined blade design

    Human design plain stage for keeping books
    Save space, it's easy to put and take books on the plain stage of machine

    Oscillating oil cylinder patented technology
    Oil cylinder oscillating design makes balanced cutting power

    spin cutter with outer fine adjustment technology
    Outer adjustment, easy operation

    Adjustable gap of blade carrier patented technology
    ±0.2mm cutting precision, long service time

    Blade with double row holesdesign
    Increasing the frequency of the use of blade, reduce cost

    Partial pressure technology for hydraul
    ic systemEffectively overcome the creasing for book cover

    Intelligent control, LCD
    Optimization and upgrading program, pressing, cutting time and calibrating spot of pushing size can be set at will,99programs can be set fpr program series. Each program 7 cuts

    Pushing paper with double guide rod technology device
    Double-rod paper-push ensuring the precision of pushing

    IR grating protective circuit design
    Making according to CE standard to guarantee safety with front echelette grating & back plastic cover protective design

    Balance adjustment design for machine
    Easy to move, and adjust the balance of machine

    Optical cutting line
    Infrared laser indicating line, high-visible


    Specifications


    Item670mm hydraulic paper cutting machine
    Model noDB-670V8
    Max cutting size670mm
    Min. cutting size30mm
    Cutting thickness80mm
    Cutting precision+-0.2mm
    Pressing paper modeHydraulic
    Push paper modeProgram
    ProgrammableYes
    DisplayLCD
    Power220V/1100V;1.5KW
    Machine size1200x960x1550mm
    Machine weight500kgs

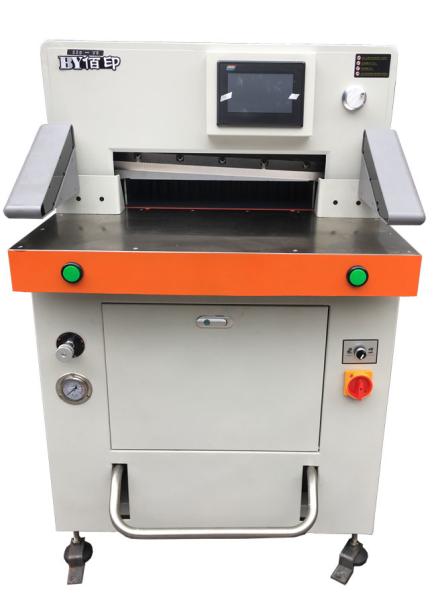

    670mm Hydraulic paper cutting machine photo


    Paper Cutter – also referred to as paper guillotines are designed to precisely cut larger quantities of paper at once. Paper guillotines which are available on our site are capable of cutting between 15– 40 sheets during a single use of the cutter. The way a paper guillotine operates is similar to scissors just that instead of having two movable knives you only have one knife that is moving and the other one is stationary. Such method of cutting allows getting straight cuts which would be impossible to achieve if using scissors. Paper cutters are available for various paper sizes including the most popular sizes like A4 and A3.

    1. Optimized structure design, precise production, stable preference, solid and durable;

    2. Performance and sturdy for long use;

    3. Adopt innovative integrated stable computer numerical control, ensure machine working reliable;

    4.There is digital display indicates the size before cutting and after cutting;

    5. Manual paper forward, Push button switch, both hand on work locking device, auto reset function,safety guarantee;

    6. Adopt high speed steel blade, sharp and endure;

    7. Adopt infrared ray safe lock and protect-cover, safety guarantee;

    8. Fashionable simple design, beauty and utility;

    9. Separated motor-driven paper press, press before cutting, oblique cutting, ensure the cutting precisely;

    10. Fashionable and simple design.
