    Office Fully Automatic Paper Cutting Machine Automatic Cutting Machine For 520mm Paper

    Ask Lasest Price
    Brand Name : Customized
    Model Number : DB-5208A
    Certification : CE
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 500 units per month
    • Product Details
    • Company Profile

    Office Fully Automatic Paper Cutting Machine Automatic Cutting Machine For 520mm Paper

    520mm fully automatic Paper Cutting Machine, office paper cutter machine 520mm


    Specification: China Supplier Paper Guillotine, Office Paper Cutting Machines 520


    1. Double lead screws and ball screws for pushing paper

    Double lead screws and ball screws for pushing paper platform without slot design, to make the pushing force more equal and durable, It matches up the servo motor control design, cutting precision is better, and increasing the speed of pushing paper.


    2. Swing arm design of blade carrier patented technology
    The design makes the roller slot not easy to wear and tear, and can adjust the gap of blade carrier to ensure cutting accuracy.


    3. Inclined blade cutting patented technology
    Any thick paper can be cut smooth and easily with inclined blade design.


    4. Leak-Proof design
    Make the cylinder in the state of seal and is no any leak.


    5. Double hydraulic with strong power system
    Taiwan motor with strong power, imported hydraulic components for ensuring quality, with external knob to adjust pressure of paper clamp.


    6. 7'' large LCD touch screen
    The cutting depth and size calibration can be adjusted by setting the program, 100 series programs and 96 cuts for each series programs. Humanization design makes the operation easier and more convenient.


    7. Taida PLC control board design
    (1) It is easy to use and simple to program
    (2) It has anti-interference ability and reliability.
    (3) and easy to replace


    8. Plate with Aluminum hard anodizing process
    The new aluminum panels, are light smoothed and wearable.


    9. Mechanical pedal
    Pressure paper proofread position,easy and convenient.


    10. Type 4 IR

    The type 4 IR with high safety factor, according to CE.


    Description DB-5208A hydraulic paper cutting machine


    DB-5208A hydraulic paper cutter machine is a programmed paper cutting machine, it is a industrail hydraulic paper cutter, very powerful cutting, we have our own QC department and R&D team. All of our paper cutter machine are higher quality with CE standard. Our paper cutting machine is easy for operation with english manual and working video. higher value and competitive prices.We have one year warranty for our Paper cutting machine.


    Specifications


    Item520mm hydraulic paper cutting machine
    Model noDB-5208A
    Max cutting size520mm
    Min. cutting size30mm
    Cutting thickness80mm
    Cutting precision+-0.2mm
    Pressing paper modeHydraulic
    Push paper modeProgram
    ProgrammableYes
    DisplayLCD
    Power220V/1100V;1.5KW
    Machine size1250x1010x1390mm
    Machine weight400kgs

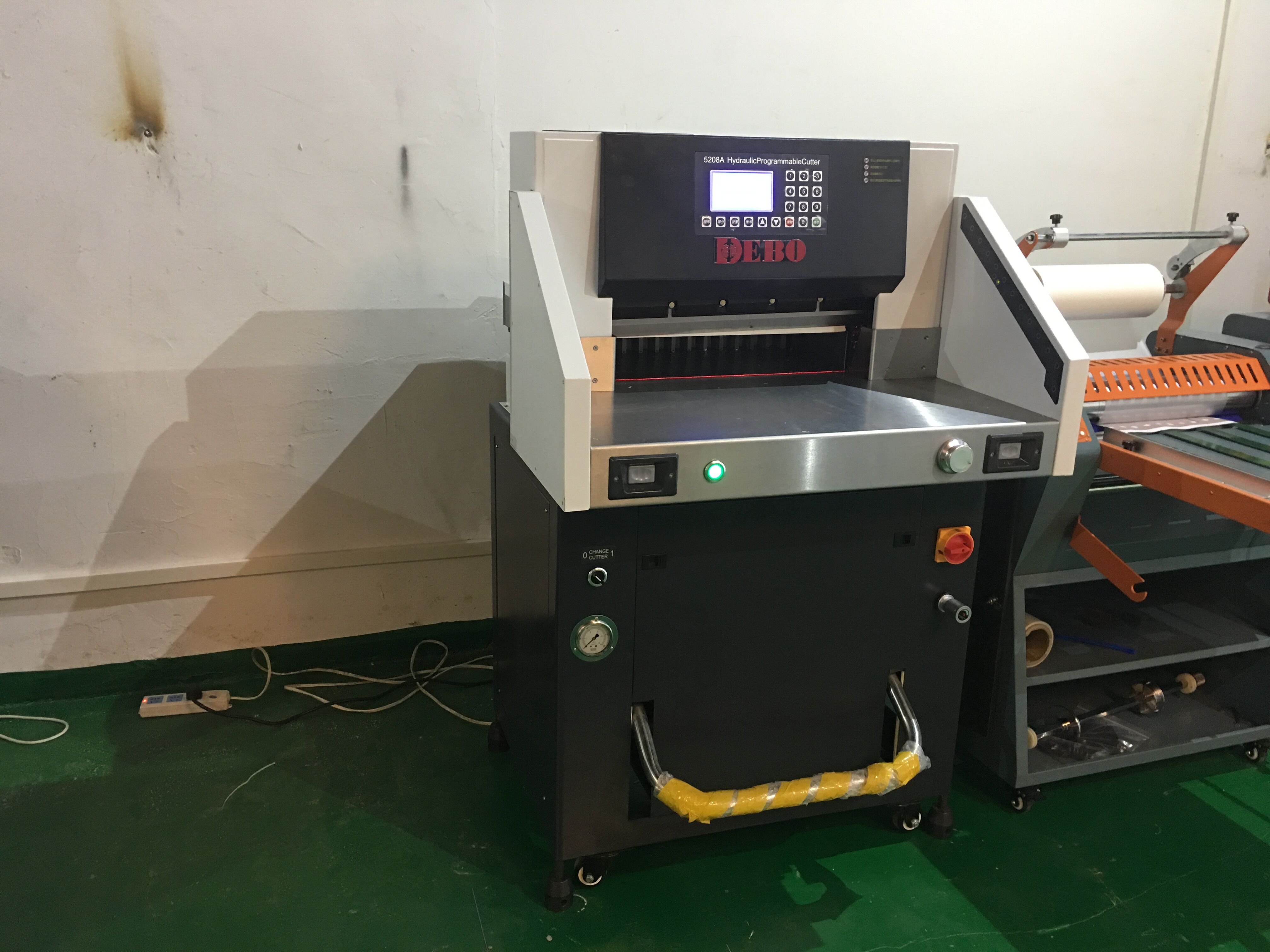

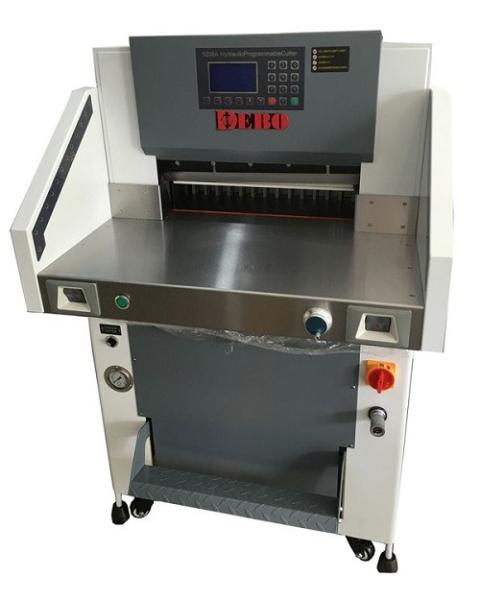

    Products show (520mm Industrail Hydraulic Paper Cutting Machine )



    Paper cutter machine is a traditional product which used to handle the late printing paper cut demand.Manual paper cutter, electric cutter, and hydraulic Cutter are belong to industrial paper cutter. DB-5208A is programing paper cutting machine with high-quality and good reputation
